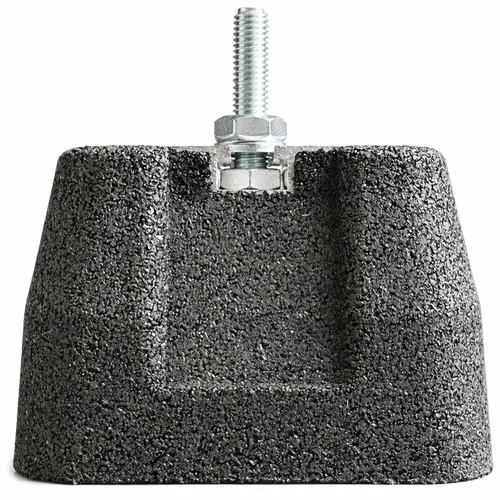

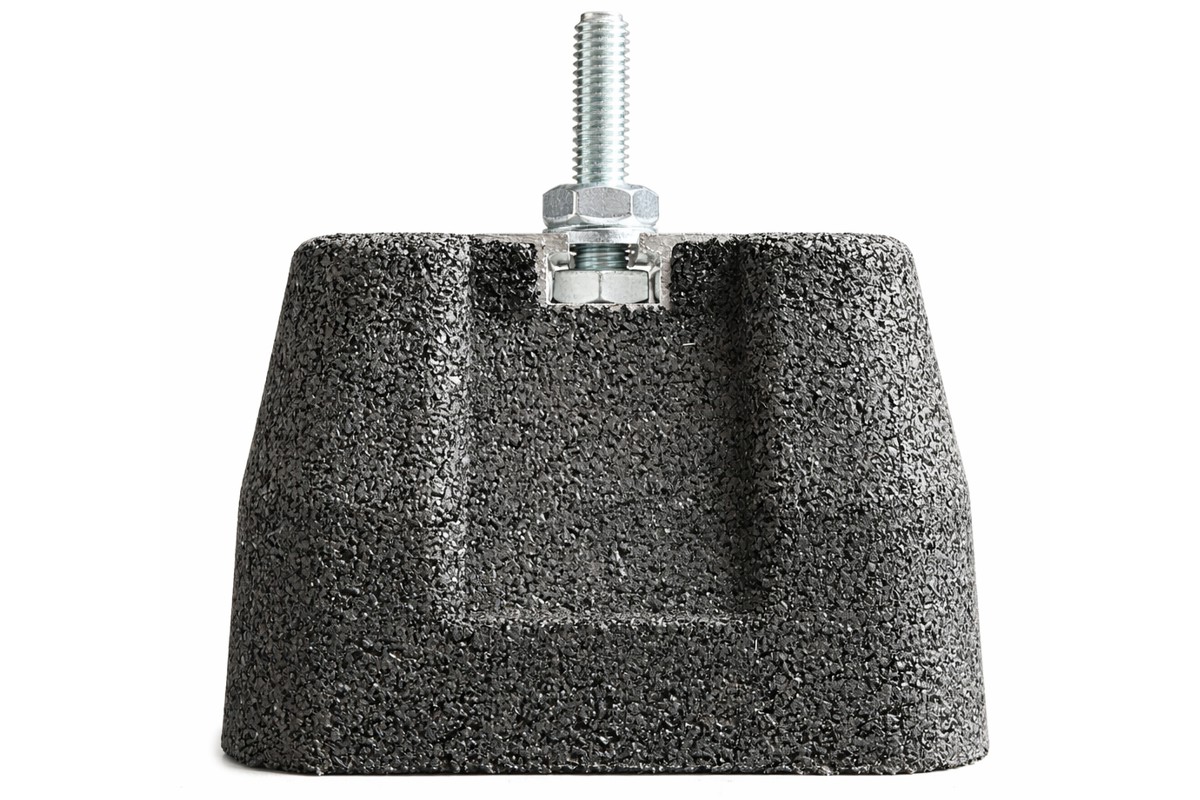

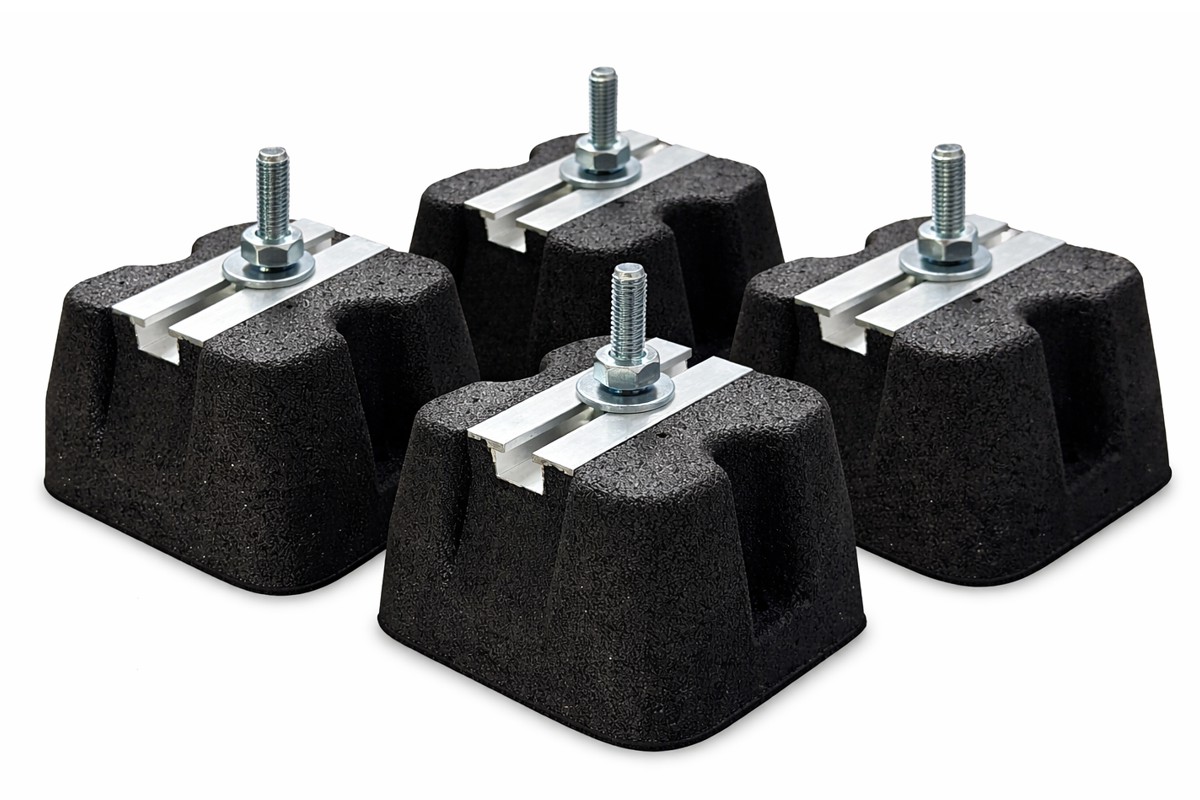

BP-1212-M10
- Rubber mounting pads 12×12cm with mounting rail
CHARACTERISTICS AND APPLICATION
Rubber supports designed for the stable installation of industrial equipment on roof surfaces, balconies, terraces, and other substrates with a slight incline. The product is made of pressed SBR granulate with excellent vibration-damping properties, making it ideal as a base for air conditioning units, heat pumps, refrigeration units, ventilation ducts, pipelines, and other technical installations. The supports are equipped with standard M10 bolts, including washers and nuts.

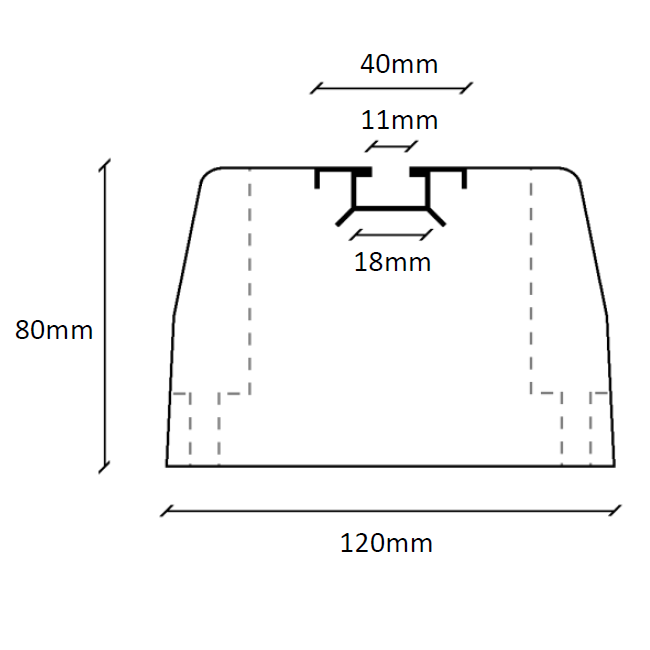

TECHNICAL SPECIFICATION
Length: 120 mm
Width: 120 mm
Height: 80 mm
Weight: 4x0,8 kg
Maximum load: 4×50 kg
Operating temperature: -30 … 80 °C
