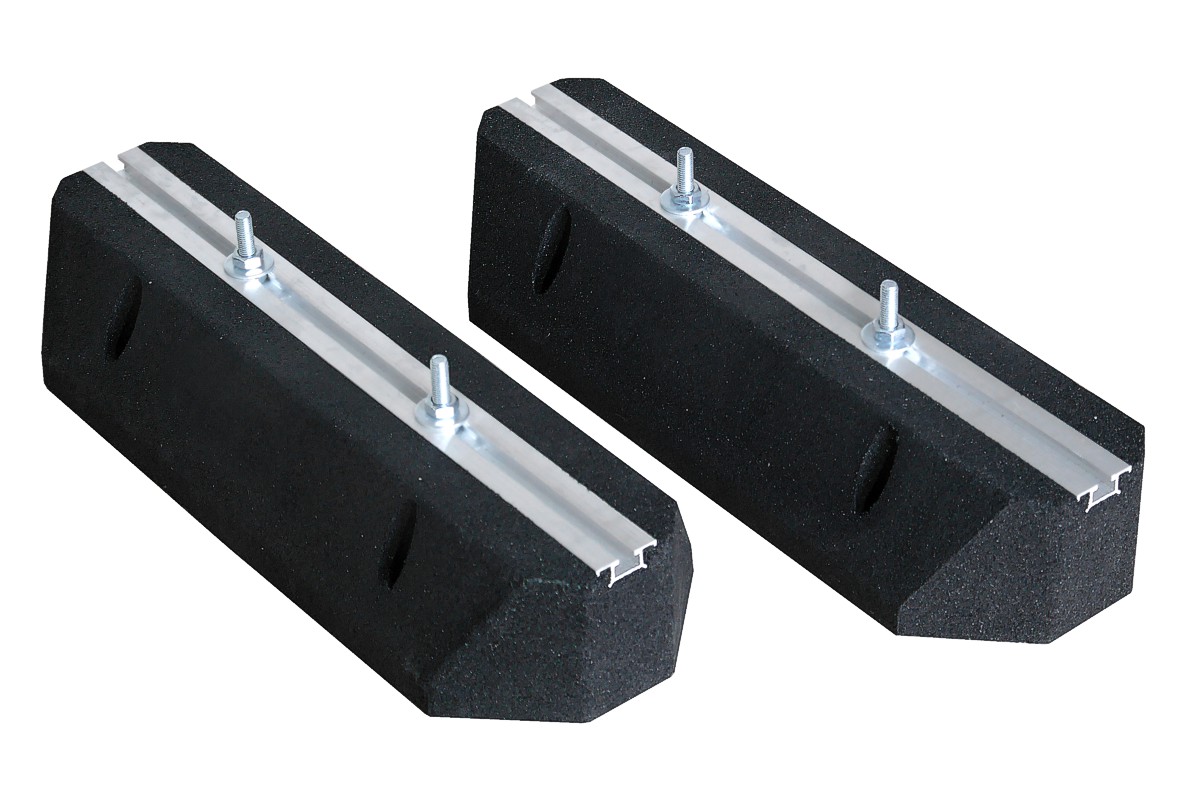

BP-400-M10
- Rubber base 40 cm
CHARACTERISTICS AND APPLICATION
The rubber supports are designed for stable installation of industrial equipment on flat roof surfaces, balconies, terraces, and other slightly inclined substrates. The product is made of pressed SBR granulate with excellent vibration damping properties, making it ideal as a base for air conditioning units, heat pumps, refrigeration aggregates, ventilation ducts, pipelines, and other technical installations. The supports are equipped with corrosion-resistant aluminium mounting profiles, ensuring easy installation with standard M10 bolts included in the set.

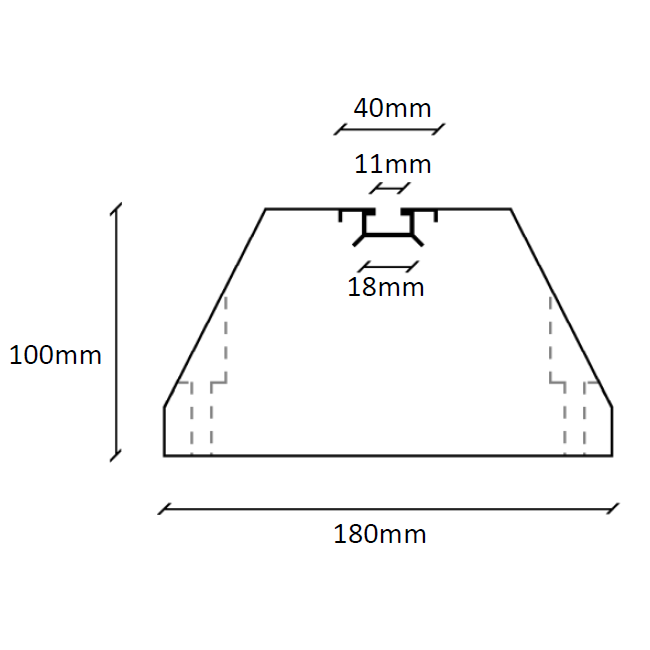

TECHNICAL SPECIFICATION
Length: 400 mm
Height: 100 mm
Width: 180 mm
Weight: 2x3,6 kg
Maximum load: 2×200 kg
Operating temperature: -30 … 80 °C
