BP-3636-P41

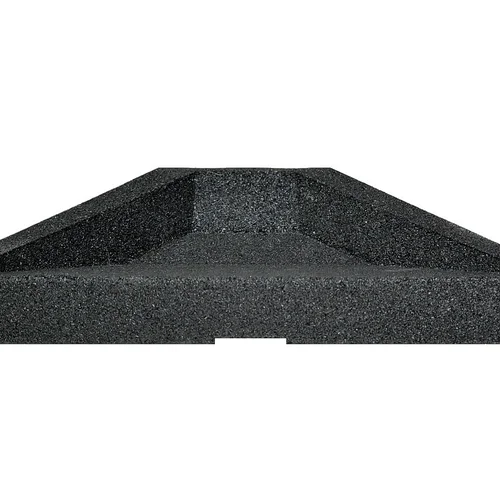

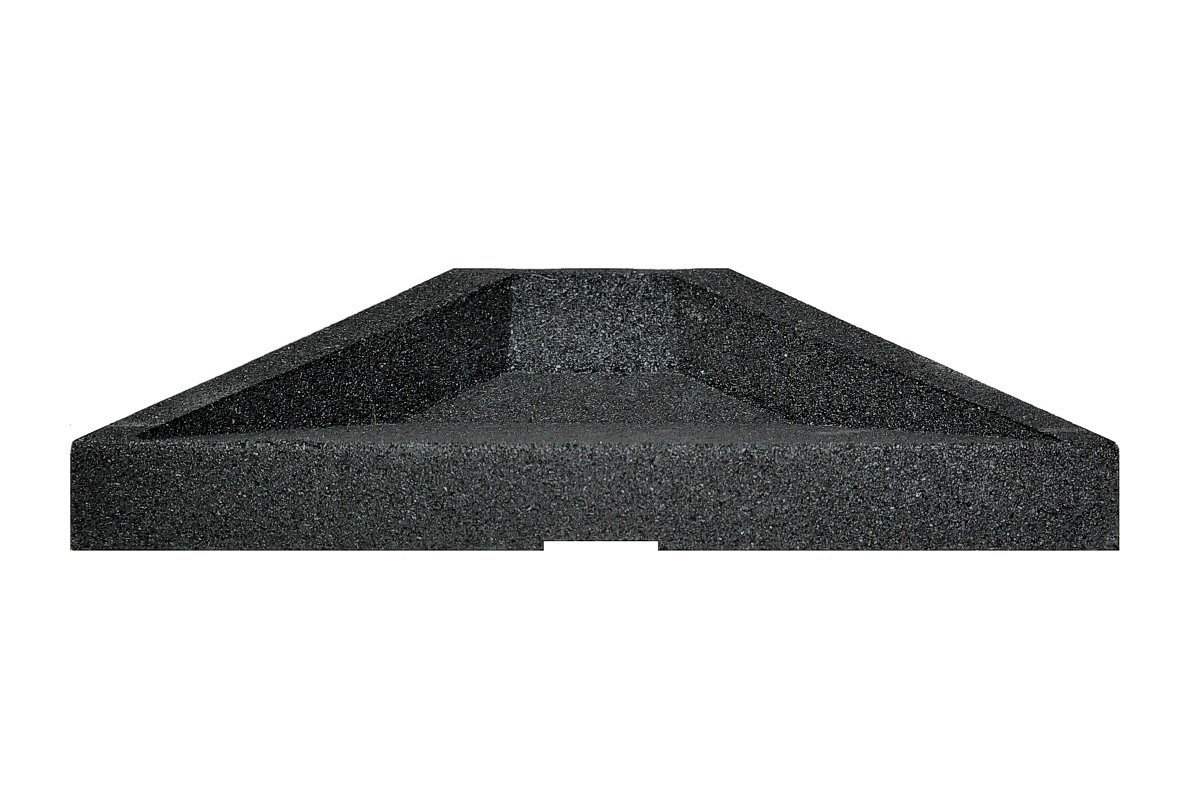

- Big Foot rubber base 36x36 cm
CHARACTERISTICS AND APPLICATION

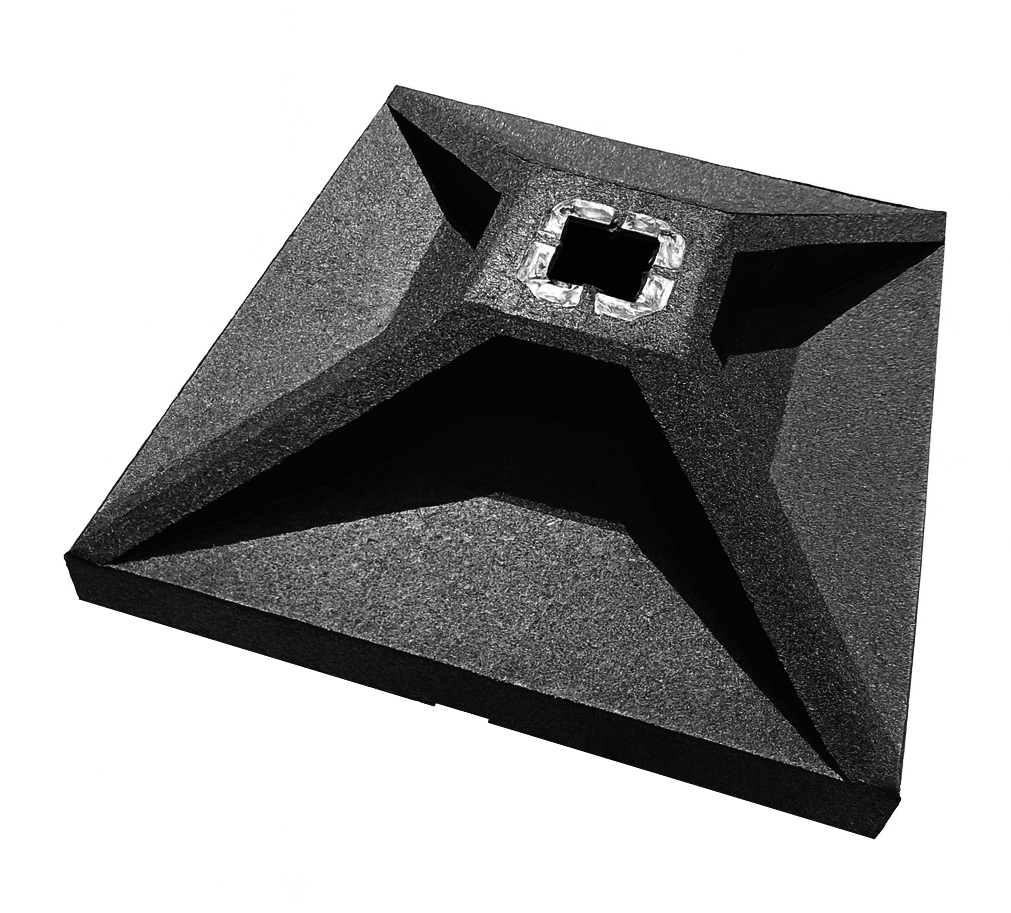

The BIG FOOT rubber support is designed for stable installation of industrial equipment on flat roof surfaces and other slightly inclined substrates. The support is made of pressed SBR granulate with high resistance to weather conditions, UV radiation, and excellent vibration damping properties. It is ideally suited as a base for air conditioning units, refrigeration aggregates and devices, solar panels, platforms, ventilation ducts, pipelines, and other technical installations. The support is equipped with an adapter compatible with standard 41x41 mm mounting profiles, ensuring simple and quick installation.
TECHNICAL SPECIFICATION

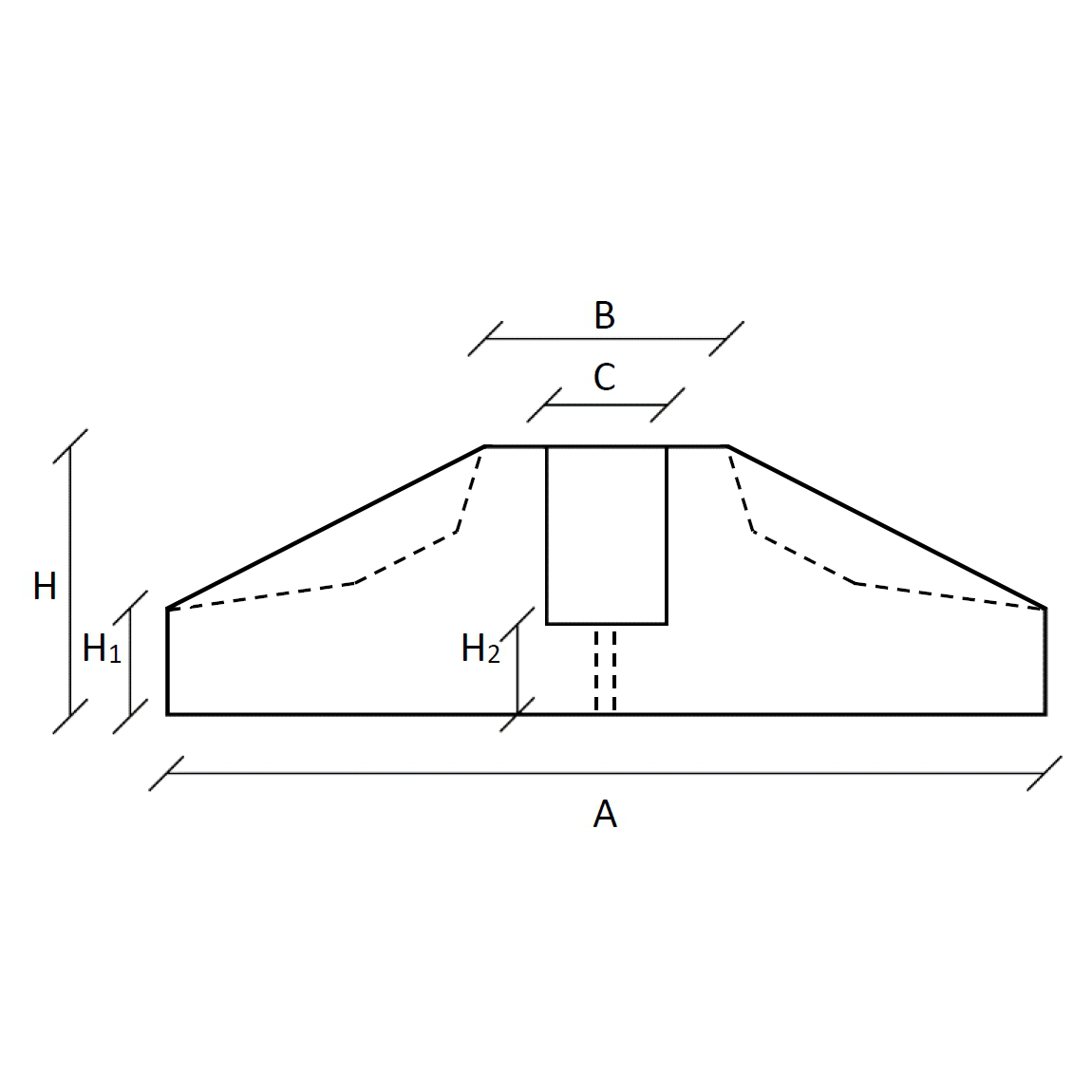

Dimensions:
A: 360 mm
H: 105 mm
H1: 40 mm
H2: 35 mm
B: 100 mm
C: 42 mm
Properties:
Weight: 6.2 kg
Maximum load: 150 kg
Operating temperature: -30 … 80 °C
